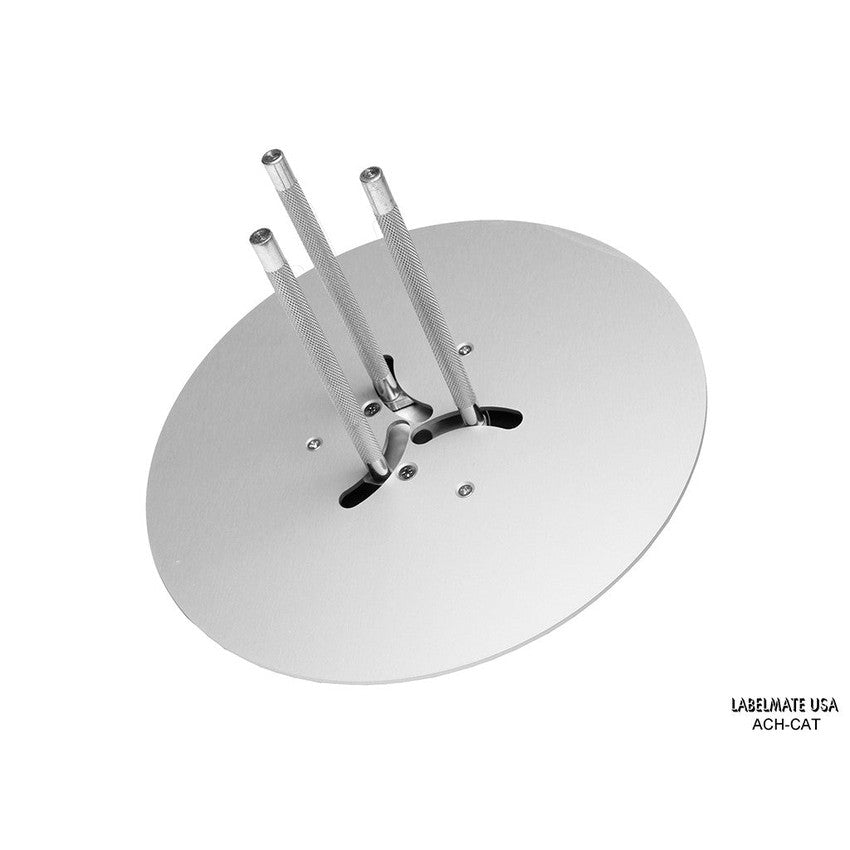

Labelmate Adjustable Core Holder for CAT Rewinders and UCAT Unwinders - ACH-CAT

SKU:81-246-0002
$281.25
$281.25 $300.00
Sale Sold out
Shipping calculated at checkout.

Description

Adjustable Core Holder for CAT Rewinders and UCAT Unwinders.

  • Core Diameter: 1" - 4"Adjustable (25-101mm)
  • Max. Media Width: 6” (152mm)
  • Max. Roll Weight: 15 lbs (6.8 kg)
  • Mounting: Setscrew, press fit
  • Mounting Hole Diameter: 0.626”
  • Mounting Hole Depth: 1.33” (34mm)
  • Composition: Steel and Anodized Aluminum
  • Warranty: 3 Year Parts and Labor Limited Warranty

Description

Adjustable Core Holder for 1” - 4” diameter cores (25 - 101mm). Interchangeable with QUICK-CHUCK Core-Holders and STANDARD Shafts. Fits precisely on a 0.625” (15.875mm) diameter motor shaft. A setscrew affixes the Core-Holder firmly onto the flat of the motor shaft.

APG-CAT

Outer Guide Assembly to maintain flush roll edge purchased separately.

Shipping Information

  • Size: 14”x6”x6” (355x152x152mm)
  • Weight: 3 lbs. (1.36 kg)
