• Labelmate Mechanical Core-Chuck - C1.5-270-Core-Chucks-CardBoardCore
1 1

Labelmate Mechanical Core-Chuck - C1.5-270

SKU:80-197-0001
$370.31
$370.31 $395.00
Sale Sold out
Shipping calculated at checkout.

Description

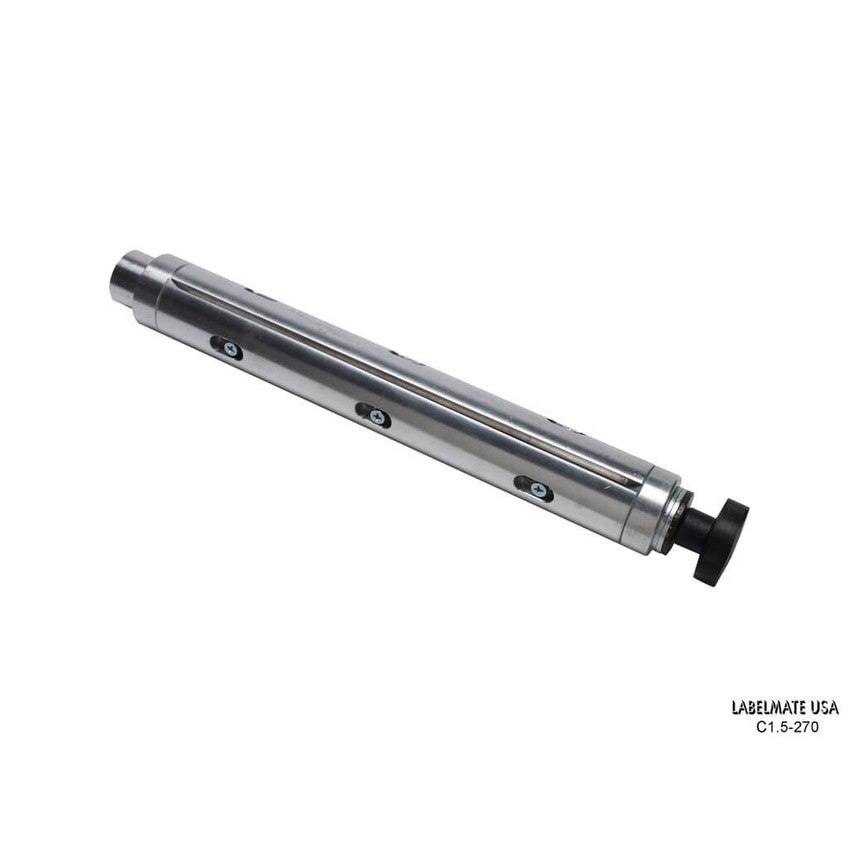

Mechanical Core-Chuck, 1.5” diameter, 10.6” Length.

  • Core Diameter: 1.5" (38mm)
  • Length: 10.6” (270mm)
  • Mounting: Setscrew, press fit
  • Mounting Hole Diameter: 0.626” (15.9mm)
  • Mounting Hole Depth: 1.33” (34mm)
  • Composition: Anodized Aluminum
  • Warranty: 3 Year Parts and Labor Limited Warranty

Description

This spring-loaded mechanical “Quick-Chuck” makes loading and unloading large rolls virtually effortless. The Chuck tightly grips the inside of the core while the roll is wound. Simply turn the knob clockwise (right) to expand/tighten the Chuck, and counterclockwise (left) to contract/release the Chuck. This “Quick-Chuck” fits precisely on a 0.625” (15.875mm) motor shaft. A setscrew locks the Chuck to the flat on the shaft.

APG-CAT

Outer Guide Assembly to maintain flush roll edge purchased separately.


Shipping Information

  • Size: 14”x6”x6” (355x152x152mm)
  • Weight: 4 lbs. (1.81 kg)

Downloads

  • Made in America

    Made in Detroit - All Products Cut To Desired Length

  • Quality Cardboard

    We Only Use High Quality Low Dust Raw Materials

  • wholesale direct

    Increase Your Profits & Save Money - Buy Wholesale Direct
