Labelmate Mechanical Core-Chuck - C40-170
Couldn't load pickup availability
-
Type:
Core-Chucks
- Tags: Beastbranding+cardboardcore, Cat-label-core-chucks, Cat-labelmate, Core diameter_1.575" (40mm), Core-chucks, Labelmate-usa, Product category_core-chuck, Sell-out-of-stock, Specialorder
Description
Mechanical Core-Chuck, 1.575” diameter, 6.7” Length.
- Core Diameter: 1.575" (40mm)
- Length: 6.7” (170mm)
- Mounting: Setscrew, press fit
- Mounting Hole Diameter: 0.626” (15.9mm)
- Mounting Hole Depth: 1.33” (34mm)
- Composition: Anodized Aluminum
- Warranty: 3 Year Parts and Labor Limited Warranty
Description
This spring-loaded mechanical “Quick-Chuck” makes loading and unloading large rolls virtually effortless. The Chuck tightly grips the inside of the core while the roll is wound. Simply turn the knob clockwise (right) to expand/tighten the Chuck, and counterclockwise (left) to contract/release the Chuck. This “Quick-Chuck” fits precisely on a 0.625” (15.875mm) motor shaft. A setscrew locks the Chuck to the flat on the shaft.
APG-CATOuter Guide Assembly to maintain flush roll edge purchased separately.
Shipping Information
- Size: 14”x6”x6” (355x152x152mm)
- Weight: 5 lbs. (2.27 kg)

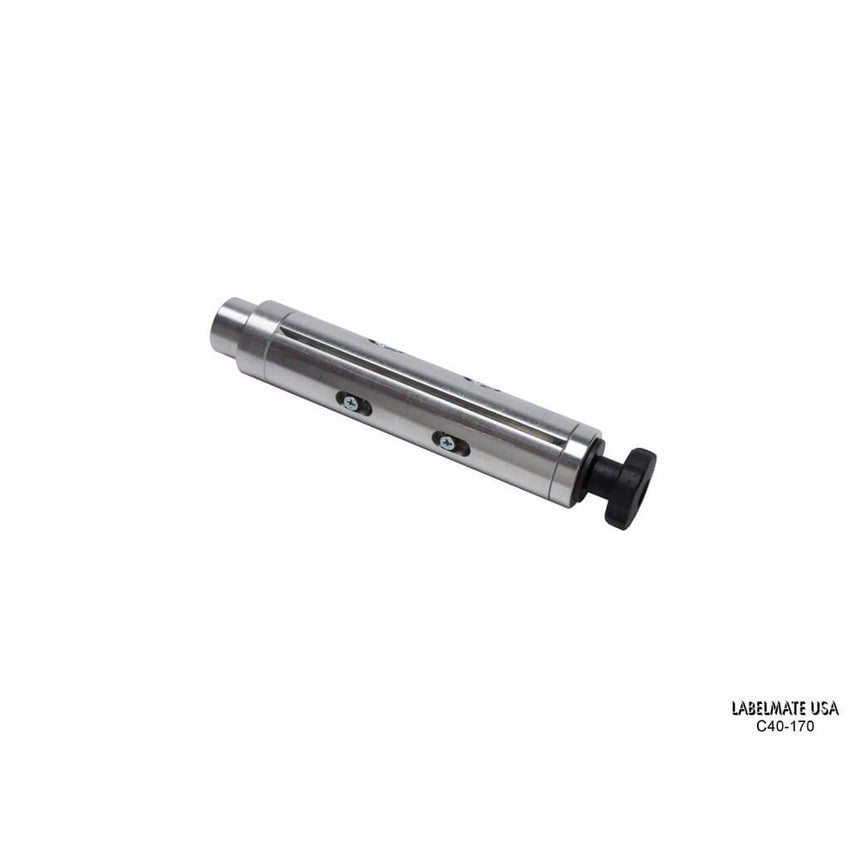

![Labelmate Mechanical Core-Chuck - C40-170-Core-Chucks-CardBoardCore](http://cardboardcore.com/cdn/shop/files/labelmate-mechanical-core-chuck-c40-170-core-chucks-labelmate-usa.jpg?v=1712692657&width=1445)
-
