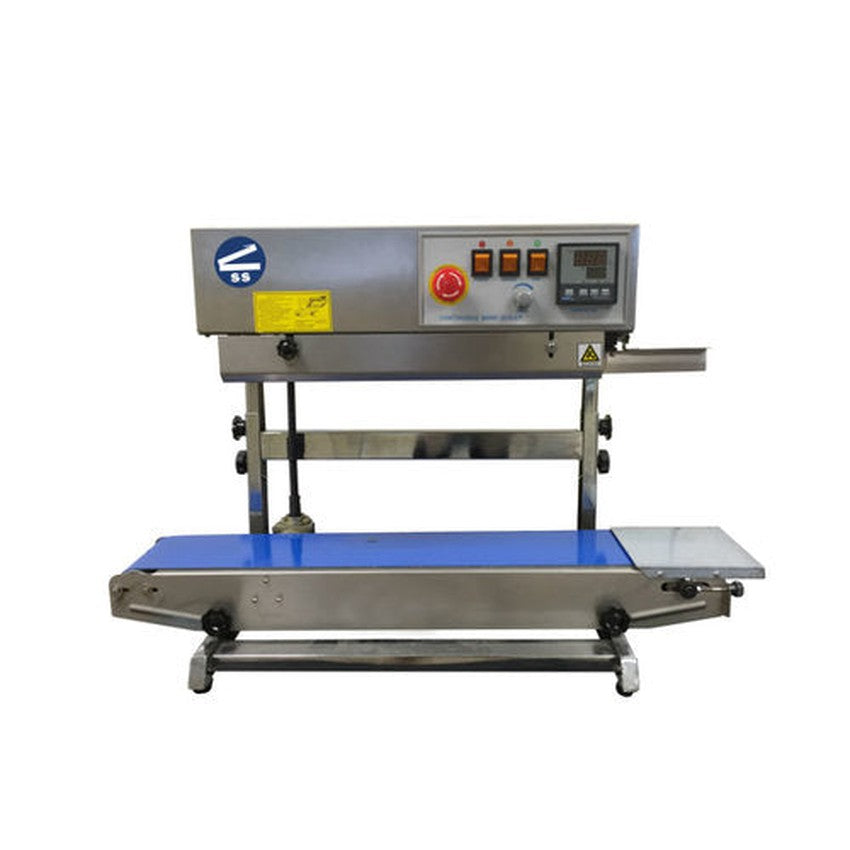

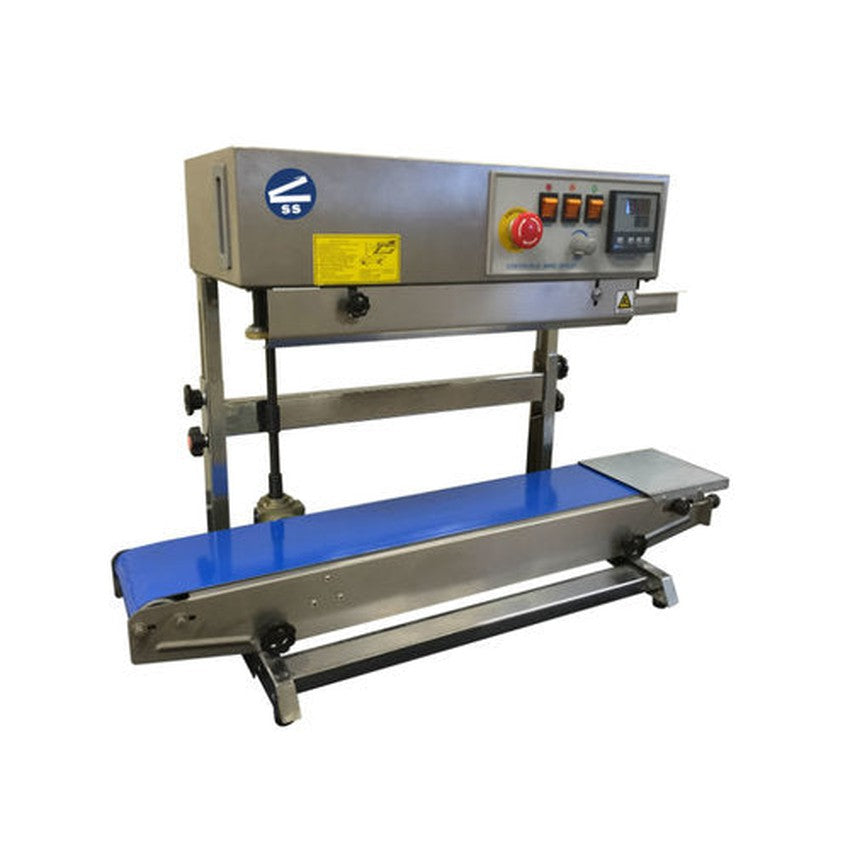

Sealer Sales Horizontal With Vertical Kit Band Sealer Embossing - Right Feed - (1 Count)

SKU:CBS-880II-PALLET
Regular price $760.00
Sale price $760.00 Regular price
Sale Sold out
Shipping calculated at checkout.

Description

Suitable for sealing all types of plastic materials and bags.  One of our most popular band sealers with a great value propositions.  Can seal 20-26 6" wide poly bags per minute.

FEATURES:

  • Vertical configuration with minimum and maximum bag height when bag filled:  Min: 6.0" / Max: 12.0"

  • Durable stainless steel

  • Easy to operate - minimal operator training

  • Fast warm up time

  • Seals any thermoplastic material including PE, PP, and laminates

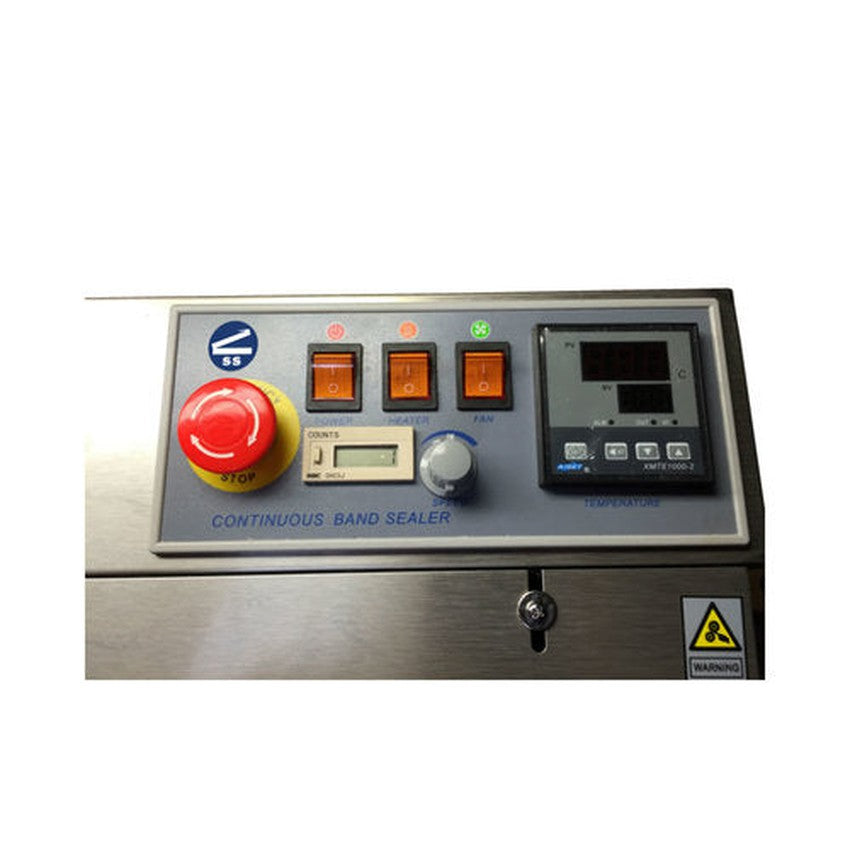

  • Solid state temperature controller to maintain seal bars at proper temperature for consistent seal quality

  • Motorized rubber conveyor with speed control

  • Knurled pressure wheel rolls with variable pressure adjustment

  • One pair each of cooling and heating blocks

  • Sealing method - constant direct heat

  • Unit feeds right to left

  • Equipped with an emergency stop button

  • Includes wheel to emboss on seal line without ink

  • Shipped in horizontal configuration - convert to vertical with included kit

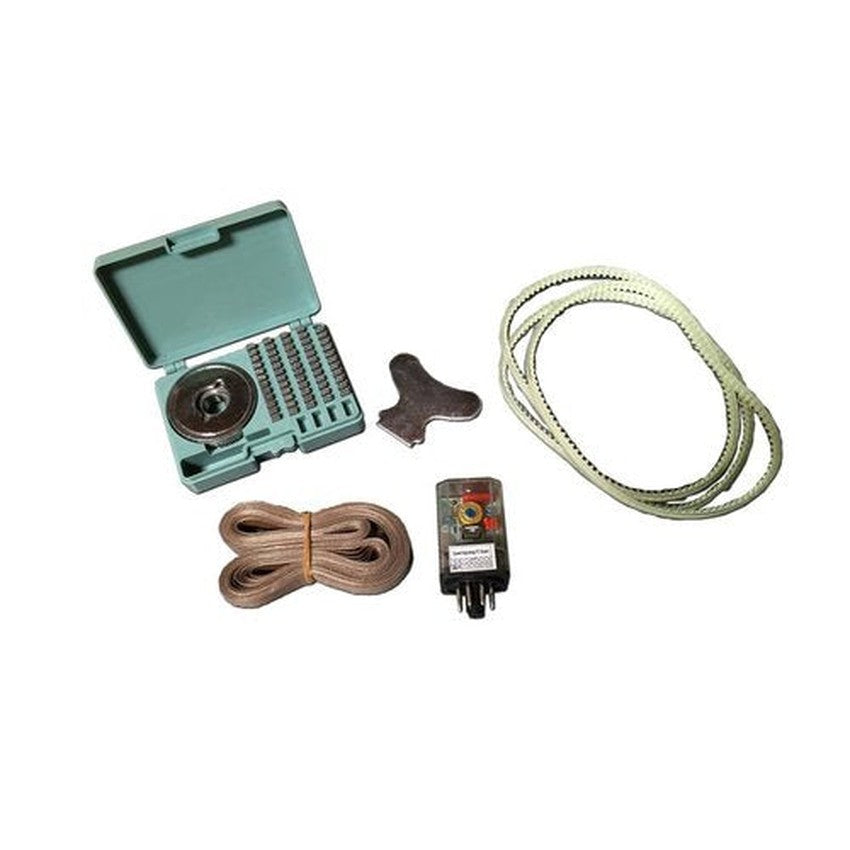

  • Spare parts include:  PTFE sealing belt, drive belt, PC Board, tools, and typesets (numbers 0-9 and letters EXD)

OPTIONAL FEATURES:

  • Smooth or serrated wheel

  • 15mm or 30mm seal width

  • Digital counter to keep track of sealed packages

  • Increase vertical configuration to minimum and maximum bag height when filled:  Min: 11" / Max: 16.5"

Specifications:

Header 1 Header 2
Power 110V / 60Hz
Motor / Sealing Power 50W / 300x2
Sealing Speed 0-630"/min
Seal Width 10MM
Temperature Range 0-300°C
Conveyor Size 38" x 7"
Max. Conveyor Load Under 22-lbs
Bag Size (Vertical) 6" - 12"
Character Size 3 x 4 x 9mm
Optional Embossing 1 Line Embossing (3 sections with 15 characters/line)
Dimensions 33" x 15" x 22"
Weight (lbs) 66
